Description
The MOPA (Master Oscillator Power-Amplifier) fiber laser/amplifier architecture is used to amplify the output of a seed laser to higher power. The seed incorporated in our MOPA can be configured by the user with different pulse widths and repetition rates according to the desired application. The energy and output power are also user-controlled.
Genia Photonics MOPA fiber laser can be used in conjunction with the programmable laser as part of a synchronized laser system. Moreover, it is available as a tunable MOPA fiber laser with all its parameters (wavelength, pulse width, repetition rate) configurable via the graphical user interface. Polarization Maintaining (PM) and Randomly Polarized MOPA lasers are available to suit many different applications from laboratory research to field deployment.
The Tunable MOPA fiber laser can be used as slave or master while being synchronized with a Ti:Sa laser.
Wavelength availability ranges from 850 nm, 10xx nm, C or L-band or Second Harmonic Generation (SHG) with 532 nm, 765 nm or 792.5 nm.
Images
Target Applications
Features
- Output peak power up to 10kW
- Variable pulse widths from 100 ps to 10 ns
- Fixed pulse wdth as short as few ps
- Repetition rate from 100 kHz up to 350 MHz
- 19” rack mount or OEM configurations
- Air cooled
- Always aligned

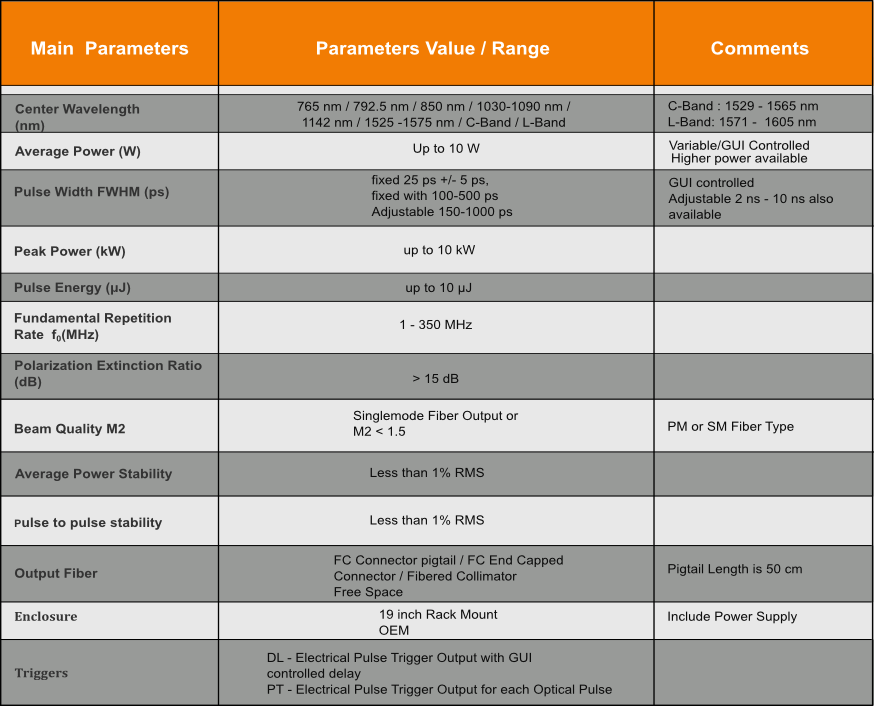

Specifications
View Document
